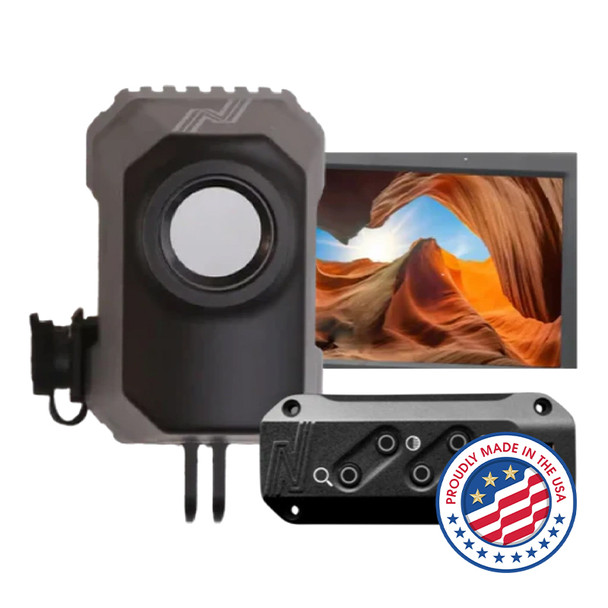

NightRide Trailblazer Grille Mount 640 USB w HDMI Controller and Monitor

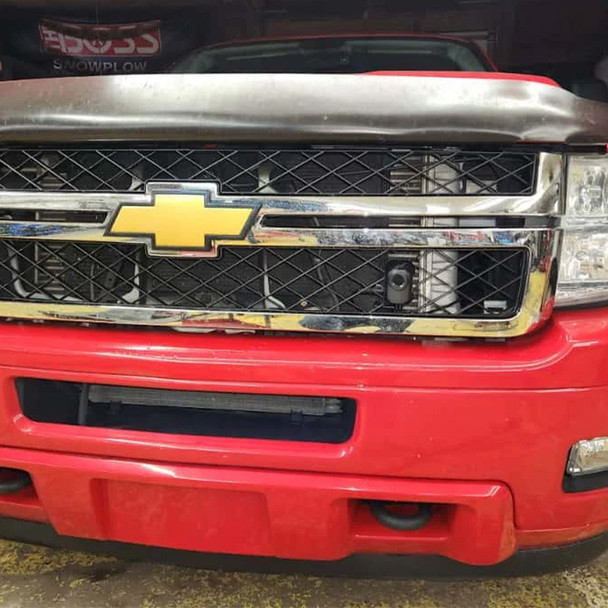

The NightRide Trailblazer 640 Grille Mount – USB is a high-resolution thermal imaging system built for discreet grille installation. With USB connectivity to the HDMI controller, the camera can be paired seamlessly with the included 8” monitor. With rugged IP69 construction, and a 90° connector for simplified mounting behind the grille, this camera delivers reliable thermal vision in the most critical situations.

Featuring a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 Grille Mount detects thermal signatures up to 660 yards away in fog, rain, snow, smoke, or complete darkness. It installs quickly using the included hood mount, while the 90° connector allows seamless integration behind the grille. Streaming and power are supplied directly via USB-A 3.1 to a Windows laptop or tablet. Supporting continuous or event-based recording, the system consumes just 4W while delivering smooth 30hz video. With IP69 sealing, it’s built to withstand extreme conditions and mission demands.

Trailblazer extends visibility beyond headlights, enabling drivers and operators to see threats, obstacles, and targets in all conditions. Whether for tactical use, safety, or off-road performance, it ensures critical seconds of awareness to prepare and act effectively.

Main Features

• High-resolution 640 x 512 thermal imaging
• Vehicle Hood Mount included
• USB to the Trailblazer - HDMI Controller to 8” Monitor
• Controller enables change of color palette, zoom and recording
• Snapshot or event-based recording
• Rugged IP69 sealed construction

Specifications

• Dimensions: 4" x 3" x 3"
• Weight: 6 oz (0.375 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP69
• Sensor Type: 640 x 512 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 48° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 12 VDC power to Controller

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• USB Cable
• Trailblazer – HDMI Controller
• 8" Monitor
• Velcro Ties (x4)
• NOTE: Grile mount not included
