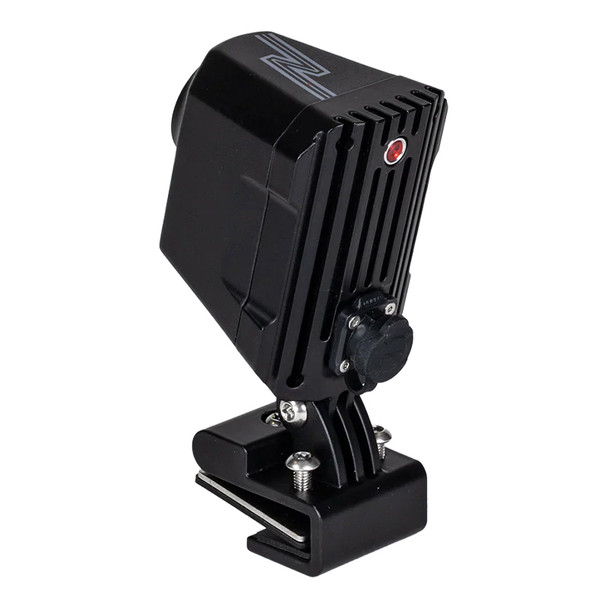

NightRide Trailblazer 640 - USB

The NightRide Trailblazer 640 USB is a high-resolution thermal camera designed for rapid installation and reliable USB connectivity. Compact and rugged, it streams directly to Windows laptops and tablets while delivering unmatched clarity for mission-critical and recreational use.

Equipped with a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 USB detects thermal signatures up to 660 yards away—even in total darkness, fog, snow, rain, or smoke. Installation is quick with the included hood mount, while USB-A 3.1 connectivity provides both power and streaming directly to a laptop or tablet. The unit supports always-on or event-based recording, consumes just 4W, and is sealed to IP69 standards to withstand the harshest conditions.

Trailblazer extends visibility beyond headlights, providing critical situational awareness for operators in any environment. Whether used for driving safety, tactical operations, or emergency response, it ensures users have the time to anticipate, prepare, and act with confidence.

Main Features

• High-resolution 640 x 512 thermal imaging
• Vehicle Hood Mount included
• USB-A 3.1 connection for power + streaming
• Always recording or event-based recording
• Rugged IP69 sealed design
• Simple, fast installation

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 640 x 512 uncooled micro-bolometer
• Lens: 13mm
• Field of View: 28° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 5 VDC (powered by Windows laptop/tablet USB-A 3.1)

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• USB Cable
• Velcro Ties (x4)
