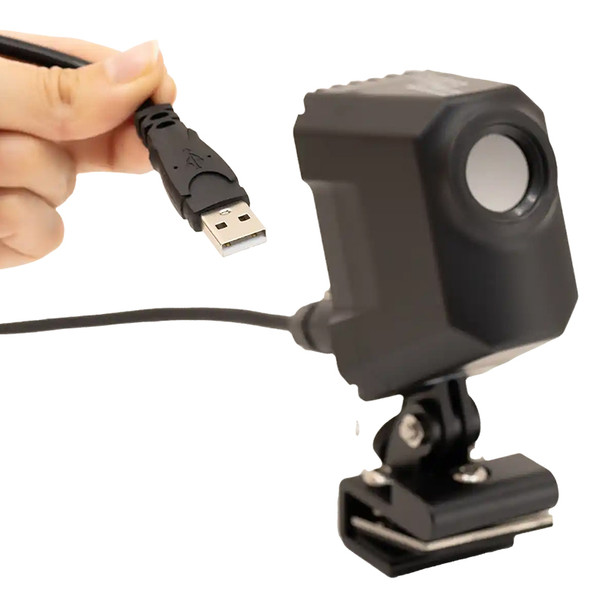

NightRide Trailblazer 384 Grille Mount USB w HDMI Controller

The NightRide Trailblazer 384 Grille Mount – USB is a high-resolution thermal imaging system built for discreet grille installation. With USB connectivity to the HDMI controller, the camera can be paired seamlessly with a digital monitor. With rugged IP69 construction, and a 90° connector for simplified mounting behind the grille, this camera delivers reliable thermal vision in the most critical situations.

Featuring a 384 x 288 uncooled micro-bolometer and 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards away—even in fog, rain, snow, smoke, or complete darkness. The 90° connector allows for easy mounting behind the grille, while installation is quick with the included hood mount and accessories. Streaming is simple through a laptop or tablet’s USB-A 3.1 port, with low 4W power draw for efficient operation. Ruggedly built and sealed to IP69 standards, the system withstands extreme environments while providing reliable 30hz imaging.

NightRide Trailblazer delivers critical visibility where headlights cannot. Whether driving in low-light conditions, navigating extreme weather, or operating in tactical environments, it ensures operators gain the situational awareness needed to prepare and respond safely.

Main Features

• High-resolution 384 x 288 thermal imaging
• Vehicle Hood Mount included
• USB to the Trailblazer - HDMI Controller, HDMI to a monitor
• Controller enables change of color palette, zoom and recording
• Snapshot or event-based recording
• Rugged IP69 sealed design

Specifications

• Dimensions: 4" x 3" x 3"
• Weight: 6 oz (0.375 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP69
• Sensor Type: 384 x 288 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 29° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 12 VDC power to Controller

Range

• Detection: 480 yds
• Recognition: 120 yds
• Identification: 60 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• USB Cable
• Trailblazer – HDMI Controller
• Velcro Ties (x4)
• NOTE: Grile mount not included
