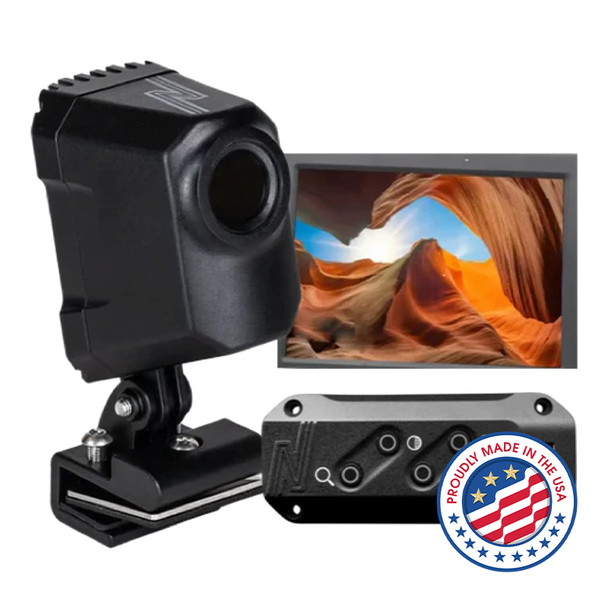

NightRide Trailblazer 384 USB w HDMI Controller and Monitor

The NightRide Trailblazer 384 – USB is a high-resolution thermal imaging system built for ease of installation. With USB connectivity to the HDMI controller, the camera can be paired seamlessly with the included 8” monitor. With rugged IP69 construction, this camera delivers reliable thermal vision in the most critical situations.

Equipped with a 384 x 288 uncooled micro-bolometer and a 9mm lens, the Trailblazer 384 USB detects heat signatures up to 480 yards away—even in darkness, fog, rain, snow, or smoke. Installation is quick using the included hood mount, and video streams directly to a Windows laptop or tablet over USB-A 3.1. With rugged IP69 sealing, lightweight design, and efficient 4W power consumption, this system is built to endure extreme conditions while delivering continuous 30hz imaging performance.

NightRide Trailblazer enhances vehicle safety and mission effectiveness by providing visibility far beyond the reach of headlights. It enables drivers and operators to anticipate, prepare, and respond with confidence in challenging environments.

Main Features

• Standard resolution 384 x 288 thermal imaging
• 8" Monitor included
• Vehicle Hood Mount included
• USB to the Trailblazer - HDMI Controller, HDMI to 8" monitor
• Controller enables change of color palette, zoom and recording
• Snapshot or event-based recording
• Rugged IP69 sealed construction

Specifications

• Dimensions: 4" x 3" x 2 ½"
• Weight: 6 oz (0.375 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP69
• Sensor Type: 384 x 288 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 29° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 12 VDC power to Controller

Range

• Detection: 480 yds
• Recognition: 120 yds
• Identification: 60 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• USB Cable
• Trailblazer – HDMI Controller
• 8" Monitor
• Velcro Ties (x4)
