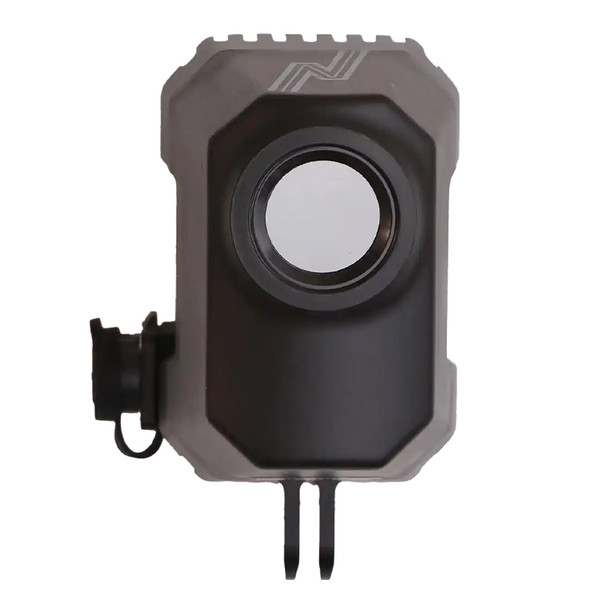

NightRide Trailblazer 640 Grille Mount w/ Ethernet

The NightRide Trailblazer 640 Grille Mount – Ethernet is a high-resolution thermal camera system engineered for discreet grille integration. With Wi-Fi hotspot and Ethernet connectivity, rugged IP69 durability, and a 90° mounting connector, it offers unmatched situational awareness for vehicles and portable operations.

Featuring a 640 x 512 uncooled micro-bolometer and a 13mm lens, the Trailblazer 640 Grille Mount delivers outstanding clarity with detection up to 660 yards—even in fog, snow, rain, smoke, or total darkness. The 90° connector simplifies grille mounting, while installation is quick with the included hood mount. Video streams via Wi-Fi hotspot or Ethernet to displays, with support for always-on or event-based recording. The unit can also be deployed on foot using a GoPro mount and auxiliary battery pack. With IP69 sealing, 4W power consumption, and rugged construction, it's built to withstand extreme conditions and mission demands.

Trailblazer extends vision beyond the reach of headlights—providing critical awareness for safer driving, tactical surveillance, and rescue operations. Whether mounted to vehicles or carried portably, it ensures operators gain the crucial seconds they need to anticipate and act.

Main Features

• High-resolution 640 x 512 thermal imaging
• Vehicle Hood Mount included
• Wi-Fi hotspot or Ethernet connectivity
• 90° connector for grille mounting
• Portable use with GoPro mount + auxiliary battery pack (not included)
• Always recording or event-based recording
• Rugged IP69 sealed design

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 640 x 512 uncooled micro-bolometer
• Lens: 13mm
• Field of View: 28° (H)
• Frame Rate: 25hz
• Power Consumption: 4W
• Power Requirements: 12–16 VDC

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• Passive PoE Cable
• Passive PoE Injector Adapter
• Cigarette Plug to Barrel Cable
• Alligator to 6-Pin Cable
• Ethernet Cable
• USB-C and Lightning Adapters
• Velcro Ties (x4)
• Ring Connections
• NOTE: Grille mount not included
