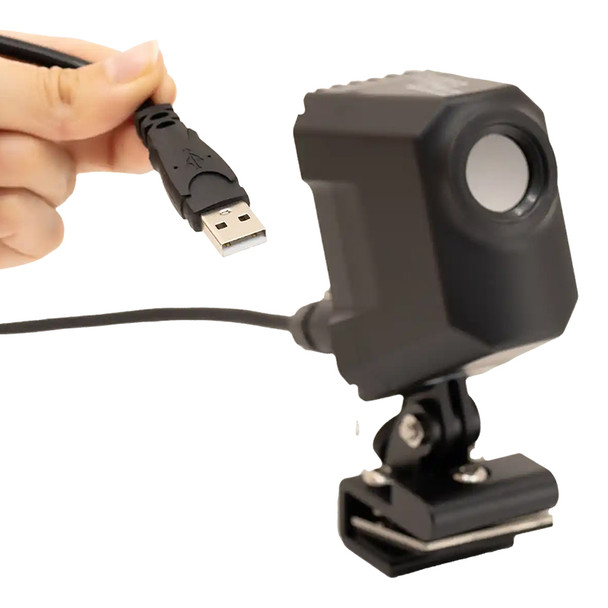

NightRide Trailblazer 640 USB w HDMI Controller and Monitor

The NightRide Trailblazer 640 – USB is a high-resolution thermal imaging system built for ease of installation. With USB connectivity to the HDMI controller, the camera can be paired seamlessly with the included monitor. With rugged IP69 construction, this camera delivers reliable thermal vision in the most critical situations.

Equipped with a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 USB detects thermal signatures up to 660 yards away—even in total darkness, fog, snow, rain, or smoke. Installation is quick with the included hood mount, while USB-A 3.1 connectivity provides both power and streaming directly to a laptop or tablet. The unit supports always-on or event-based recording, consumes just 4W, and is sealed to IP69 standards to withstand the harshest conditions.

Trailblazer extends visibility beyond headlights, providing critical situational awareness for operators in any environment. Whether used for driving safety, tactical operations, or emergency response, it ensures users have the time to anticipate, prepare, and act with confidence.

Main Features

• High-resolution 640 x 512 thermal imaging
• Vehicle Hood Mount included
• USB to the Trailblazer - HDMI Controller, HDMI to a monitor
• Controller enables change of color palette, zoom and recording
• Snapshot or event-based recording
• Rugged IP69 sealed design

Specifications

• Dimensions: 4" x 3" x 2 ½"
• Weight: 6 oz (0.375 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP69
• Sensor Type: 640 x 512 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 48° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 12 VDC power to Controller

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• USB Cable
• Trailblazer – HDMI Controller
• 8" Monitor
• Velcro Ties (x4)
