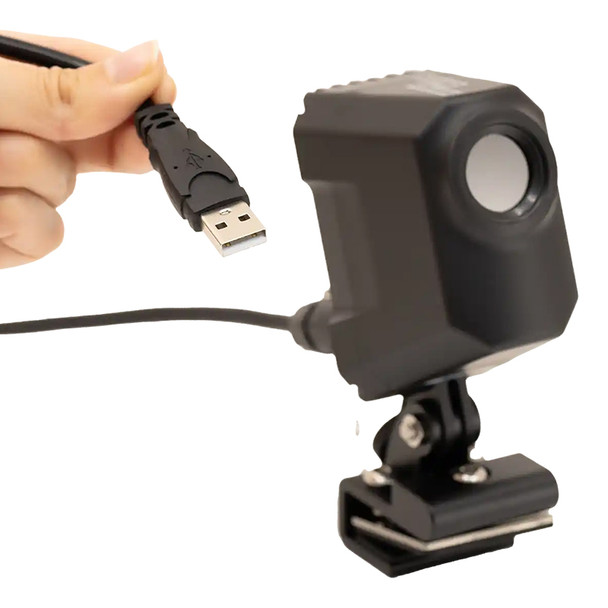

NightRide Trailblazer 384 Grille Mount - USB

The NightRide Trailblazer 384 Grille Mount – USB is a rugged thermal camera system designed for discreet vehicle integration. With direct USB-A 3.1 connectivity to laptops or tablets, it provides both power and streaming in a compact, durable package.

Featuring a 384 x 288 uncooled micro-bolometer and 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards away—even in fog, rain, snow, smoke, or complete darkness. The 90° connector allows for easy mounting behind the grille, while installation is quick with the included hood mount and accessories. Streaming is simple through a laptop or tablet’s USB-A 3.1 port, with low 4W power draw for efficient operation. Ruggedly built and sealed to IP69 standards, the system withstands extreme environments while providing reliable 30hz imaging.

NightRide Trailblazer delivers critical visibility where headlights cannot. Whether driving in low-light conditions, navigating extreme weather, or operating in tactical environments, it ensures operators gain the situational awareness needed to prepare and respond safely.

Main Features

• Vehicle Hood Mount included
• 90° connector for streamlined grille mounting
• USB-A 3.1 connection to laptop/tablet for power + streaming
• Fast and simple installation
• Rugged IP69 sealed design

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 384 x 288 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 29° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 5 VDC (powered by monitor USB)

Range

• Detection: 480 yds
• Recognition: 120 yds
• Identification: 60 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• USB Cable with plug cover
• Velcro Ties (x4)
• NOTE: Grille mount not included
