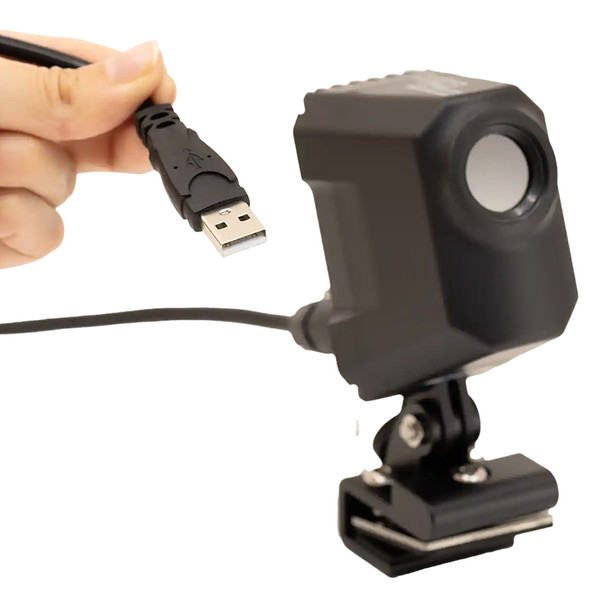

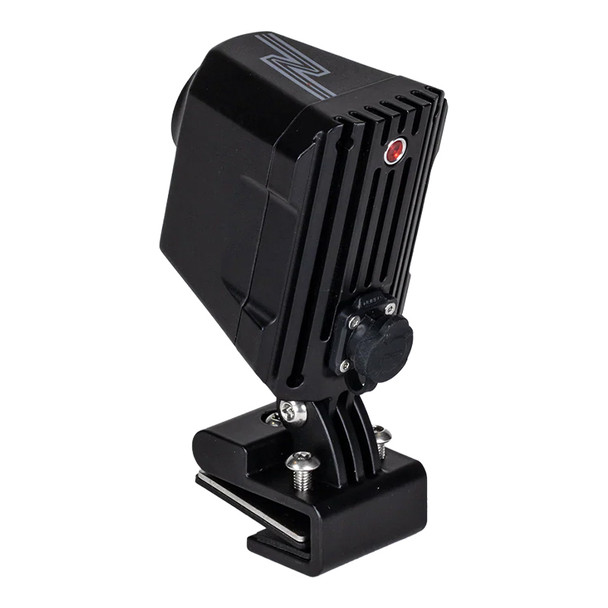

NightRide Trailblazer 384 - USB

The NightRide Trailblazer 384 USB is a compact thermal camera system designed for fast and easy installation. With direct USB-A 3.1 connectivity to laptops or tablets, it provides power and streaming in one cable, delivering reliable thermal awareness for professional and recreational vehicle use.

Equipped with a 384 x 288 uncooled micro-bolometer and a 9mm lens, the Trailblazer 384 USB detects heat signatures up to 480 yards away—even in darkness, fog, rain, snow, or smoke. Installation is quick using the included hood mount, and video streams directly to a Windows laptop or tablet over USB-A 3.1. With rugged IP69 sealing, lightweight design, and efficient 4W power consumption, this system is built to endure extreme conditions while delivering continuous 30hz imaging performance.

NightRide Trailblazer enhances vehicle safety and mission effectiveness by providing visibility far beyond the reach of headlights. It enables drivers and operators to anticipate, prepare, and respond with confidence in challenging environments.

Main Features

• Vehicle Hood Mount included
• USB-A 3.1 connection for power + streaming
• Fast and simple installation
• Rugged IP69 sealed design

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 384 x 288 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 28° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 5 VDC (powered by laptop USB-A 3.1 port)

Range

• Detection: 480 yds
• Recognition: 120 yds
• Identification: 60 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• Velcro Ties (x4)
• USB Cable
