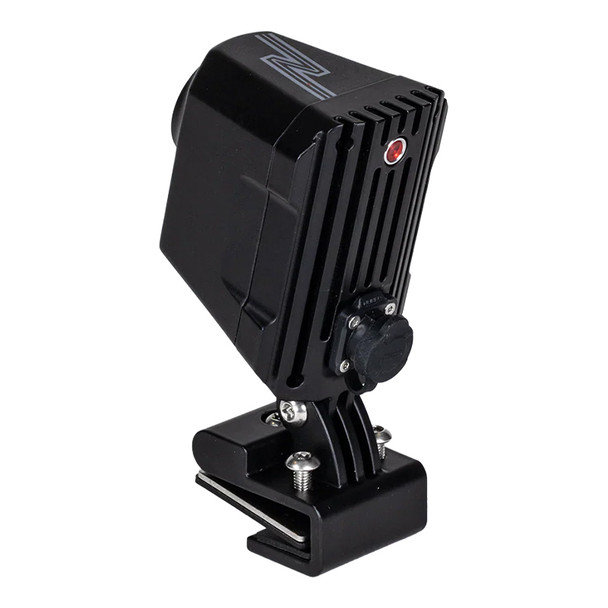

NightRide Trailblazer 384 - Ethernet

The NightRide Trailblazer 384 w/ Ethernet is a rugged, versatile thermal camera system designed for quick installation and multipurpose use. With both Wi-Fi hotspot and Ethernet connectivity, it provides reliable thermal imaging for vehicles and portable operations alike.

Powered by a 384 x 288 uncooled micro-bolometer and a 9mm lens, the Trailblazer 384 w/ Ethernet delivers dependable detection up to 440 meters (480 yards) through complete darkness, fog, rain, snow, and smoke. Installation is fast with the included hood mount, and the system streams directly to displays via Wi-Fi hotspot or Ethernet. It can also be deployed on foot with a GoPro helmet mount or backpack when paired with an auxiliary battery pack. With selectable always-on or event-based recording, IP69-sealed construction, and efficient 4W power draw, it’s built to withstand extreme operational environments.

The Trailblazer expands visibility where headlights fail—providing critical thermal vision for safe driving, tactical operations, and field deployments. Whether mounted on vehicles or used portably, it ensures operators gain the crucial seconds needed to anticipate and respond effectively.

Main Features

• Vehicle Hood Mount included
• Wi-Fi hotspot or Ethernet connectivity
• Portable use with GoPro mount + auxiliary battery pack (not included)
• Always recording or event-based recording
• Rugged IP69 sealed design

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 384 x 288 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 28° (H)
• Frame Rate: 25hz
• Power Consumption: 4W
• Power Requirements: 12-16 VDC

Range

• Detection: 480 yds
• Recognition: 120 yds
• Identification: 60 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• Passive PoE Cable
• Passive PoE Injector Adapter
• Cigarette Plug to Barrel Cable
• Alligator to 6-Pin Cable
• Ethernet Cable
• USB-C and Lightning Adapters
• Velcro Ties (x4)
• Ring Connections
