NightRide Trailblazer 640 w/ Ethernet

The NightRide Trailblazer 640 w/ Ethernet is a high-resolution thermal camera system built for versatile vehicle and portable deployment. With Wi-Fi hotspot and Ethernet connectivity, rugged IP69 construction, and fast installation, it provides unmatched situational awareness in any environment.

Featuring a 640 x 512 uncooled micro-bolometer and a 13mm lens, the Trailblazer 640 detects heat signatures up to 660 yards in fog, rain, snow, smoke, or complete darkness. Installation is quick with the included hood mount, while Wi-Fi hotspot and Ethernet provide flexible display options. The unit supports always-on or event-based recording and can also be deployed on foot with a GoPro helmet mount or backpack when paired with an auxiliary battery pack. Built to withstand harsh conditions, the system is IP69 sealed, consumes just 4W, and operates reliably at 25hz.

Trailblazer delivers superior visibility beyond the limits of headlights, providing the critical seconds needed for safe driving, tactical decision-making, and emergency response. Whether vehicle-mounted or used portably, it ensures operators have the awareness to anticipate and act decisively.

Main Features

• High-resolution 640 x 512 thermal imaging
• Vehicle Hood Mount included
• Wi-Fi hotspot or Ethernet connectivity
• Portable use with GoPro mount + auxiliary battery pack (not included)
• Always recording or event-based recording
• Rugged IP69 sealed design

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 640 x 512 uncooled micro-bolometer
• Lens: 13mm
• Field of View: 28° (H)
• Frame Rate: 25hz
• Power Consumption: 4W
• Power Requirements: 12–16 VDC

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• Passive PoE Cable
• Passive PoE Injector Adapter
• Cigarette Plug to Barrel Cable
• Alligator to 6-Pin Cable

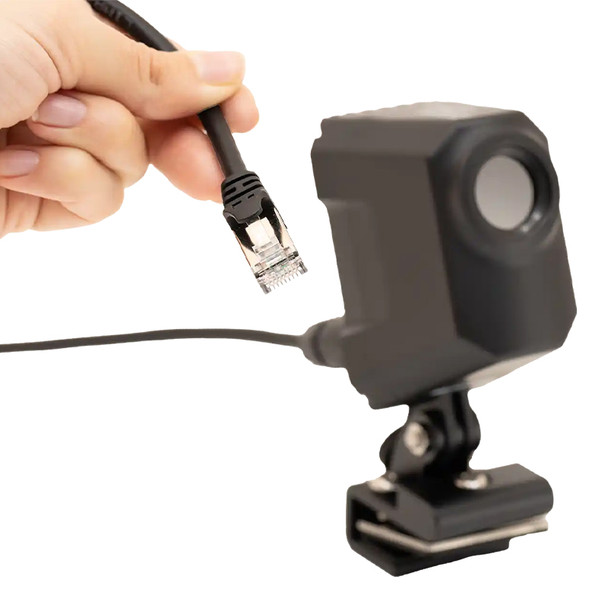

• Ethernet Cable
• USB-C and Lightning Adapters
• Velcro Ties (x4)
• Ring Connections
