NightRide Trailblazer 640 Grille Mount - Analog

The NightRide Trailblazer 640 Grille Mount – Analog is a high-resolution thermal camera system designed for discreet grille integration. With analog RCA connectivity, rugged IP69 construction, and a 90° connector for easy mounting, it delivers exceptional clarity and situational awareness for professional and recreational vehicles.

Featuring a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 Grille Mount detects heat signatures up to 660 yards away in darkness, fog, rain, snow, or smoke. The included hood mount makes installation simple, while the 90° connector streamlines grille placement. Video streams directly to RCA-compatible monitors, powered via USB. Rugged, lightweight, and sealed to IP69 standards, the system consumes just 4W while delivering real-time 30hz performance.

Trailblazer ensures critical visibility in environments where headlights cannot. Whether used for safety, tactical surveillance, or off-road operations, it provides operators with the essential awareness needed to anticipate and respond effectively.

Main Features

• High-resolution 640 x 512 thermal imaging
• Vehicle Hood Mount included

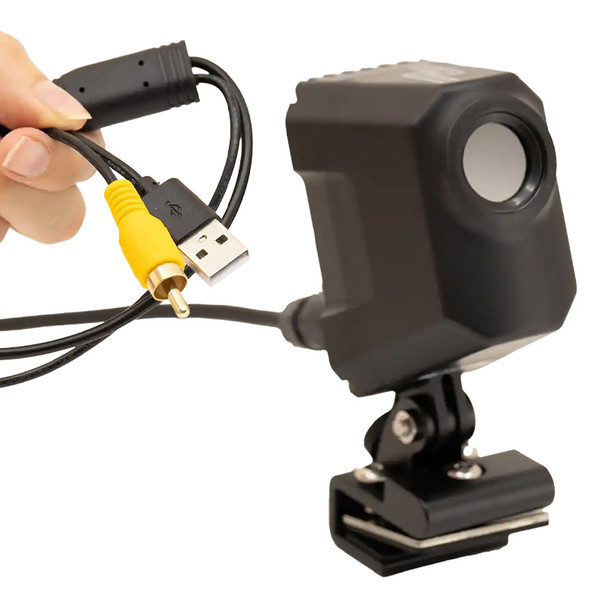

• RCA analog connection for direct streaming
• USB connection for 5V power

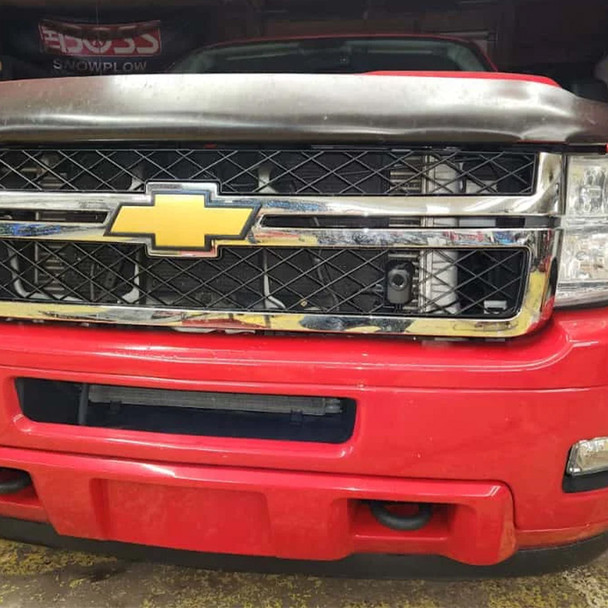

• 90° connector for grille mounting
• Rugged IP69 sealed construction

Specifications

• Dimensions: 7 ¼" x 6 ⅜" x 6 ¾"
• Weight: 6 oz (0.375 lbs)
• Operating Temp: -40°F to +140°F
• Sealed Design: IP69 rated
• Sensor Type: 640 x 512 uncooled micro-bolometer
• Lens: 9mm
• Field of View: 48° (H)
• Frame Rate: 30hz
• Power Consumption: 4W
• Power Requirements: 5 VDC (powered by Windows laptop/tablet USB-A 3.1)

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• Standard Hood Mount
• Hood Mount Tools and Accessories
• Analog + USB Cable (power + streaming)
• Velcro Ties (x4)
• NOTE: Grille mount not included
