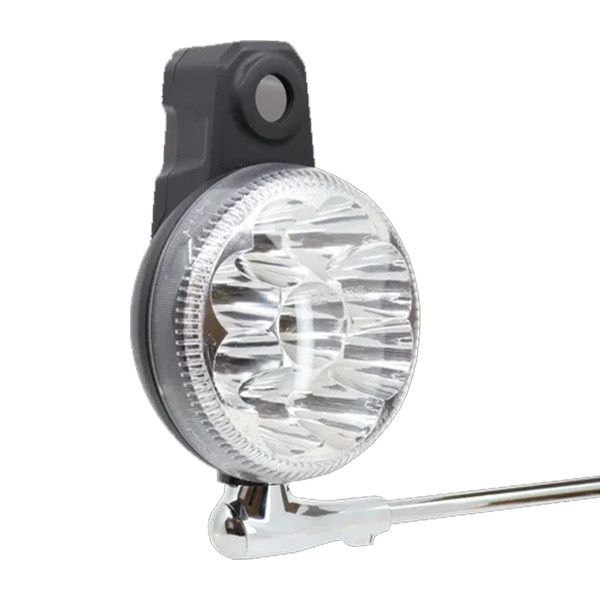

NightRide PRO-SL S04/S14 (Bowl) 640 Analog

The NightRide Pro-SL S04/S14 (Bowl) 640 Analog is a high-resolution thermal imaging system designed for rugged integration into vehicle platforms. Combining 640-grade clarity with simple analog connectivity, it delivers professional-grade thermal awareness across enforcement, rescue, and emergency response missions.

With a 640 x 512 thermal sensor and a wide 48° field of view, the Pro-SL S04/S14 (Bowl) 640 detects heat signatures beyond a quarter mile—even through fog, smoke, rain, snow, or dust. The Unity S04 or S14 Spotlight Mount and replacement bowl provide quick installation, while RCA analog connection streams video directly to monitors. Power is supplied via USB-A 3.1 connection, and the unit includes mechanical pan/tilt control for expanded coverage. Built tough with an IP67-sealed design, this system performs reliably in extreme environments while consuming just 3W of power.

NightRide Pro-SL provides discreet tactical superiority—detecting heat signatures at distances over a quarter mile in virtually any condition. Whether in law enforcement, firefighting, search and rescue, or emergency response, the Pro-SL delivers the critical seconds professionals need to act decisively.

Main Features

• High-resolution 640 x 512 thermal imaging
• Unity S04 or S14 Spotlight Mount
• Quick installation with replacement bowl
• RCA analog connection to monitor

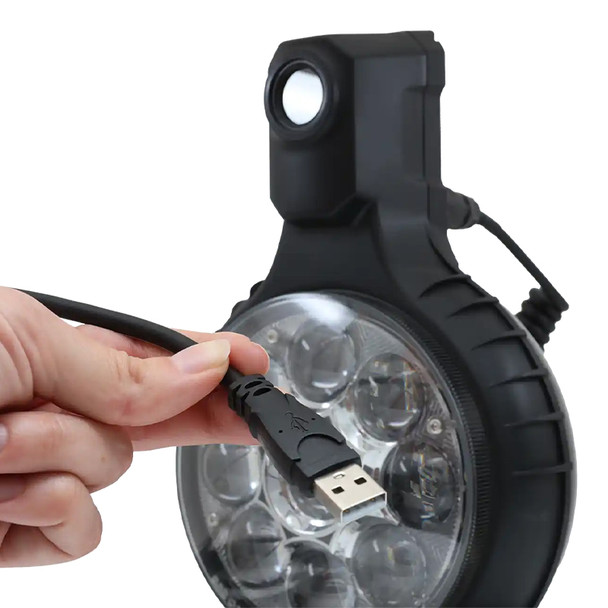

• USB-A 3.1 power connection
• Mechanical pan/tilt functionality
• Rugged IP67-sealed design

Specifications

• Dimensions: 9 ½" x 6 ½" x 3"
• Weight: 9 oz (0.56 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP67
• Sensor Type: 640 x 512 thermal sensor
• Field of View: 48° (H)
• FPS: 30hz
• Power Consumption: 3W
• Power Requirements: 5V via USB-A 3.1 port

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• RCA + USB Power Cable with Coil
• USB to USB-C Adapter
• USB Dust Cap
• Heat Shrink Tubing
• User Manual
