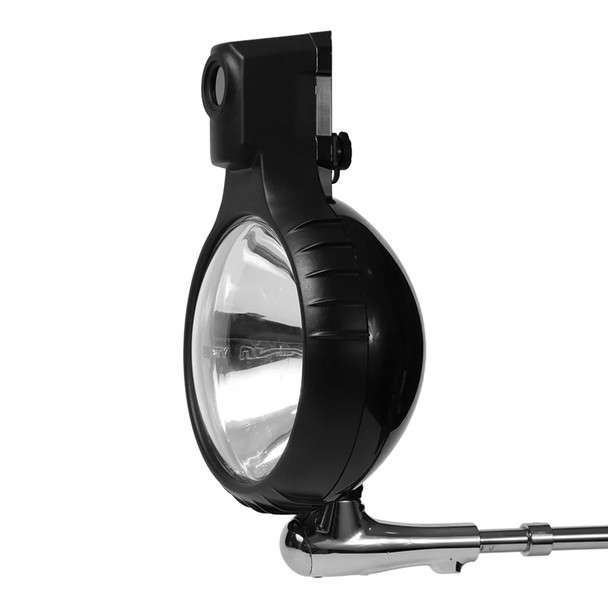

NightRide PRO-SL S04 (Ring) 640 Analog

The NightRide Pro-SL S04 (Ring) USB 384 is a compact, reliable thermal imaging system designed for seamless laptop integration. With quick installation and USB-powered operation, it gives professionals dependable thermal vision in the field with simple plug-and-play functionality.

Powered and streamed directly through a USB-A 3.1 connection to a Windows laptop, the Pro-SL S04 (Ring) USB 384 delivers effortless setup and portability. Its 384 x 288 thermal sensor and 29° field of view provide clear detection of heat signatures more than a quarter mile away, even in dust, smoke, rain, snow, or fog. The Unity S04 Spotlight Mount and replacement ring allow for fast installation on retrofits or new builds, while the mechanical pan/tilt system ensures broad situational coverage. Built to endure extreme environments with an IP67-sealed design, the unit operates from -40°F to +140°F while consuming only 3W of power.

NightRide Pro-SL provides a distinct and discreet advantage - sensing heat signatures greater than ¼ mile down the road through dust, smoke, rain, snow or fog. Whether engaging in enforcement, search and rescue, firefighting, or emergency management, NightRide Pro-SL provides critical seconds to prepare and react in any situation.

Main Features

• High Resolution
• Unity S04 Spotlight Mount

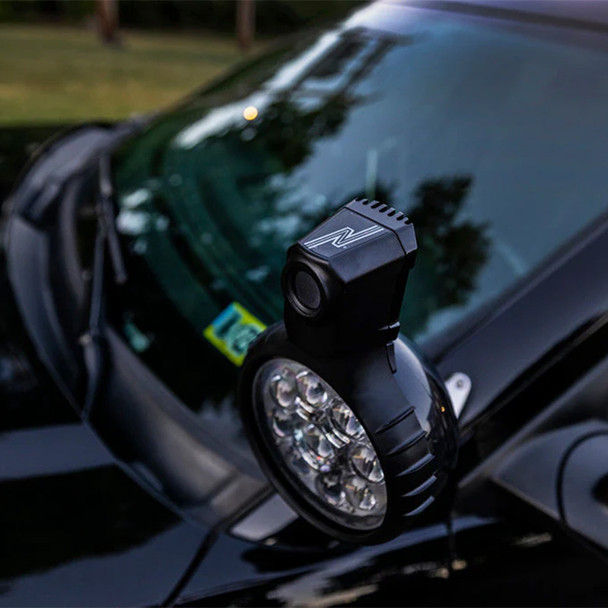

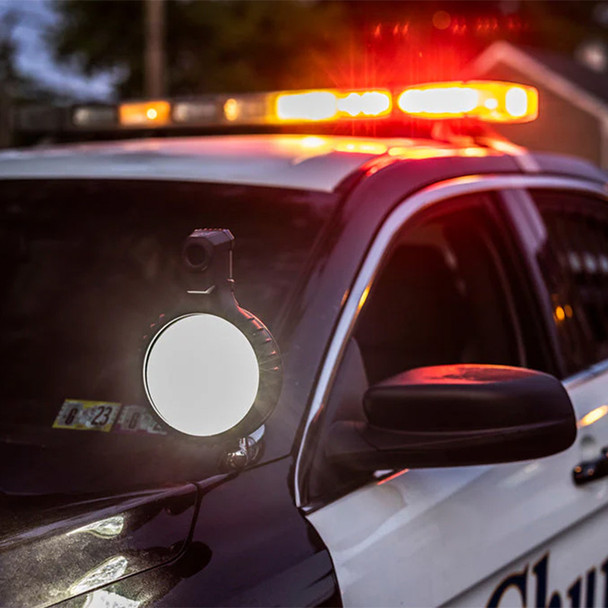

• Suitable for vehicle retrofits as well as new builds
• Quick installation with replacement ring
• Analog (RCA) connection to monitor for streaming
• USB connection to 5 volts via monitor or console USB port for power
• Mechanical Pan/Tilt

Specifications

• Dimensions: 9 ½" x 6 ½" x 3"
• Weight: 9 oz (0.56 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP67
• Sensor Type: 640 x 512
• Field of View: 48° (H)
• Frame Rate: 30hz
• Power Consumption: 3W
• Power Requirements: 5V from USB-A 3.1 port on monitor or console USB

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

• RCA + USB Power Cable with Coil
• USB to USB-C Adapter
• USB Dust Cap
• Heat Shrink Tubing
• User Manual
