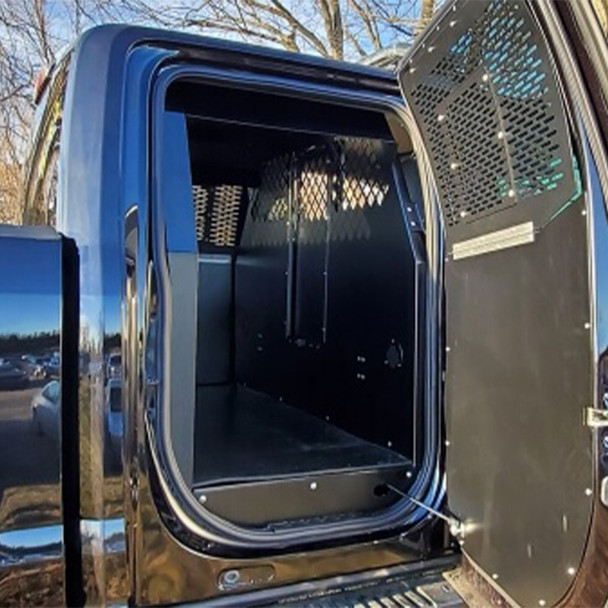

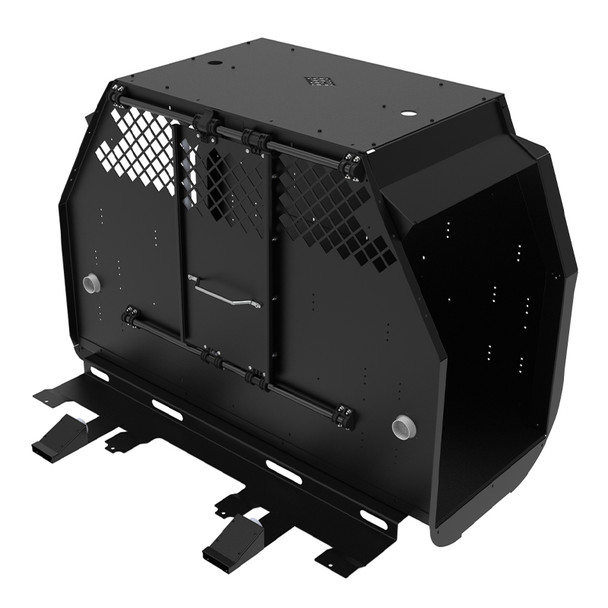

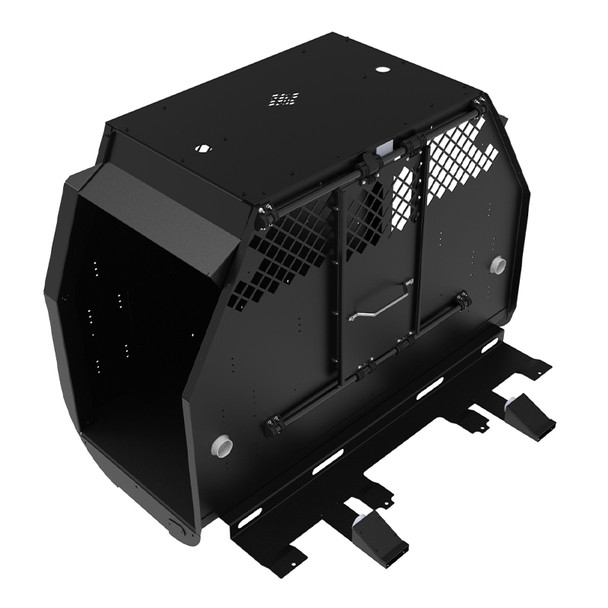

Standard K9 Transport System for 2017+ Ford F-Series - Black

• Next generation front slider door with full door range of motion left to right and improved sliders to eliminate rattle
• Smooth edges and tight gaps to prevent injury, catch and chew points
• Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
• Side storage can be added to the current K9 insert without having to uninstall. The shelving kit components serve as a template for mounting hole placement (K9-A-116, sold separately)
• Fabricated from Heavy-duty aluminum for long-lasting durability
• Durable black powder coat finish on main components
• Black powder coat finish on center sliding door and window guards
• Easy to install and clean
• Designed to maximize driver seat travel without compromising K9 entry
• Mounts to OEM mounting points. (no drilling required)
• Window guards include Bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
• Optional 10" fan and mount kit (K9-A-104) can mount on driver or passenger side
• Includes adaptors and hose to connect from OEM ductwork under seats. hose connects to vents on K9 compartment front wall
• Upper guard on rear wall folds down to allow easy access and cleaning
• Includes screw on 31"W x 12.5"H storage access panel on rear wall
• Includes one (1) interior LED dome light with white light for daytime use and red light for nighttime use - we recommend purchasing a second Dome Light (K9-A-106) when ordering a Standard Divider

Fits

• 2017-2026 Ford F-250, 350, 450 crew cab pickup
• 2017-2026 Ford F-450 and 550 crew cab/ cab chassis
• 2015-2026 Ford F-150 and F-150 Special Service vehicle (SSV) crew cab pickup
• 2022-2026 Ford F-150 Lightning

Specifications

• K9 kit window guards include a .281" x 1.75" slotted hole pattern to minimize the possibility of fingers accidentally being put into the K9 compartment
• Optional 10" fan and mount kit for window guard mounting (K9-A-104 fan option sold separately)
• Purchasing OEM optional running boards is recommended to aid in K9 entry
• Kit inside dimensions: 28" deep by 65" wide by 43.5" high
• Side entry openings: 25.5" wide x 37" high
• Front wall sliding door opening: 14" wide x 30" high
• K9 compartment floor to ground: 29.375"
• Storage space between rear K9 wall and cab wall = 6 inches long x width of cab
• Does not fit with OEM optional Pro Power Onboard inverter systems (Ford codes 472 & 477) that are mounted under rear passenger seats
• Hot-N-Pop system K9-A-201 not available for retail truck with rotary shifter on OEM console
• Only the heat alarm system K9-A-203 is available for retail truck with rotary shifter
• 12" fan not recommended
• Does not accept the K9-A-101 option
• Gross weight: 300 lbs
