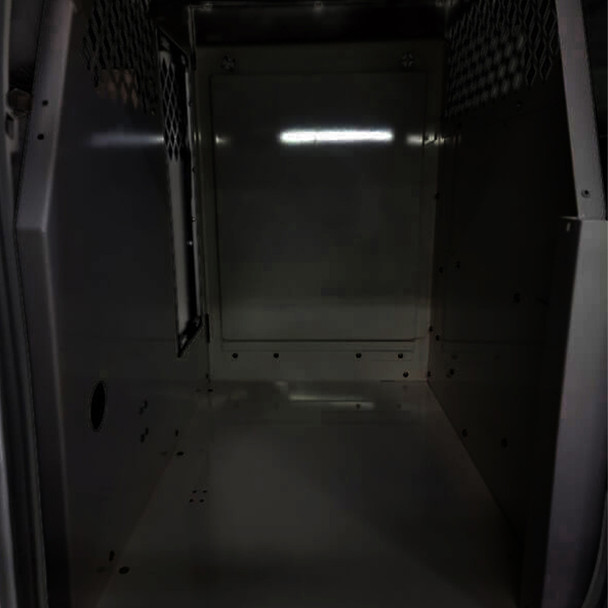

K9 Prisoner Transport System for 2017+ Ford F-Series - Black

• Next generation front slider door with full door range of motion left to right and improved sliders to eliminate rattle
• Smooth edges and tight gaps to prevent injury, catch and chew points
• Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
• K9/prisoner transport kit: K9 space is on the driver side, prisoner space is on the passenger side
• Prisoner compartment utilizes OEM passenger seat and seat belt
• Emergency exit hatch between K9 and prisoner compartments, release knobs in driver compartment
• Fabricated from Heavy-duty aluminum for long-lasting durability
• Durable black powder coat finish on main components
• Black powder coat finish on center sliding door and window guards
• Easy to install and clean
• Designed to maximize driver seat travel without compromising K9 entry
• Mounts to OEM mounting points. (no drilling required)
• Window guards include Bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
• Optional 10" fan and mount kit (K9-A-104) can mount on driver or passenger side
• Includes Heavy-duty rubber floor mat for K9 side

Fits

• 2017-2026 Ford F-250, 350, 450 crew cab pickup
• 2017-2026 Ford F-450 and 550 crew cab/ cab chassis
• 2015-2026 Ford F-150 and F-150 Special Service vehicle (SSV) crew cab pickup
• 2022-2026 Ford F-150 Lightning

Specifications

• Includes adaptors and hose to connect from OEM ductwork under seats. hose connects to vents on K9 compartment front wall
• Includes screw on 31"W x 12.5"H storage access panel on rear wall
• K9 kit window guards include a .281" x 1.75" slotted hole pattern to minimize the possibility of fingers accidentally being put into the K9 compartment
• Optional 10" fan and mount kit for window guard mounting (K9-A-104 fan option sold separately)
• Purchasing OEM optional running boards is recommended to aid in K9 entry
• K9 kit inside dimensions: 28" deep by 40.75" wide by 43.5" high
• Side entry opening: 25.5" wide x 37" high
• Front wall sliding door opening: 14" wide x 30" high
• K9 compartment floor to ground: 29.375"
• Storage space between rear K9 wall and cab wall = 6 inches long x width of cab
• Does not fit with OEM optional Pro Power Onboard inverter systems (Ford codes 472 & 477) that are mounted under rear passenger seats
• Hot-N-Pop system K9-A-201 not available for retail truck with rotary shifter on OEM console
• Only the heat alarm system K9-A-203 is available for retail truck with rotary shifter
• Product weight: 214 lbs
• Gross weight: 300 lbs
• Installation Guide (PDF)
