NightRide PRO-SL S04 (Ring) 384 Analog

The NightRide Pro-SL S04 (Ring) Analog 384 is a compact, rugged thermal imaging system designed for vehicle integration. With quick installation and versatile analog connectivity, it delivers reliable thermal vision for law enforcement, search and rescue, firefighting, and emergency management professionals who need full situational awareness in challenging environments.

Featuring a 384 x 288 thermal sensor with a 29° field of view, the Pro-SL S04 detects heat signatures beyond a quarter mile—even through dust, smoke, rain, snow, or fog. Its Unity S04 Spotlight Mount with replacement ring enables rapid, secure installation on retrofits or new builds. Streaming is simple via RCA analog connection to a monitor, with power supplied through a USB port. The mechanical pan/tilt system ensures flexible coverage, while its IP67-sealed design provides durability in extreme conditions (-40°F to +140°F).

NightRide Pro-SL provides a distinct and discreet advantage - sensing heat signatures greater than ¼ mile down the road through dust, smoke, rain, snow or fog. Whether engaging in enforcement, search and rescue, firefighting, or emergency management, NightRide Pro-SL provides critical seconds to prepare and react in any situation.

Main Features

• Unity S04 Spotlight Mount
• Quick installation with replacement ring
• Suitable for vehicle retrofits as well as new builds
• Analog (RCA) connection to monitor for streaming
• Mechanical pan/tilt functionality

Specifications

• Dimensions: 9 ½" x 6 ½" x 3"
• Weight: 9 oz (0.56 lbs)
• Operating Temperature Range: -40°F to +140°F
• Sealed Design: IP67
• Sensor Type: 384 x 288
• Field of View: 29° (H)
• Frame Rate: 30hz
• Power Consumption: 3W
• Power Requirements: 5V from USB-A 3.1 port on monitor or console USB

Range

• Detection: 660 yds
• Recognition: 180 yds
• Identification: 90 yds

Accessories

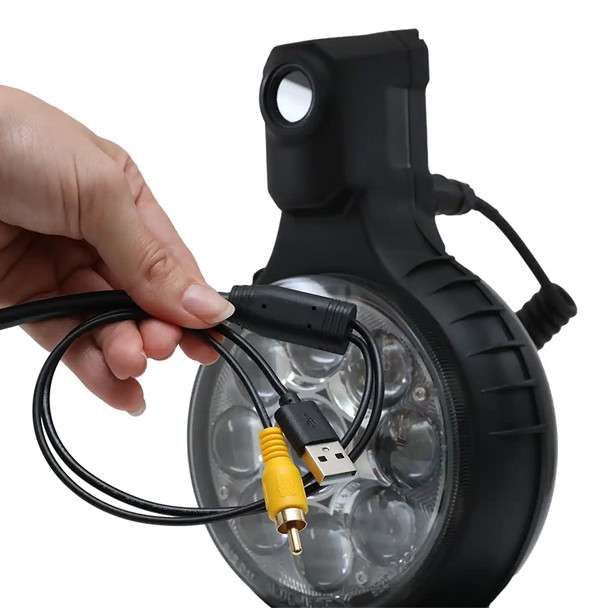

• RCA + USB Power Cable with Coil
• USB to USB-C Adapter
• USB Dust Cap
• Heat Shrink Tubing
• User Manual
