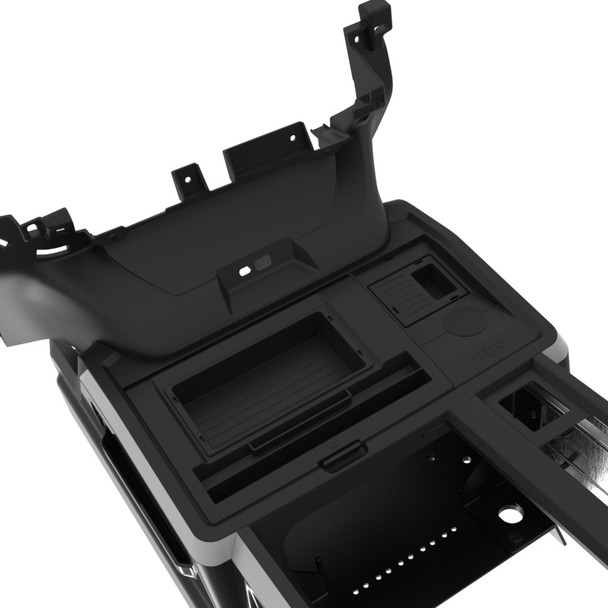

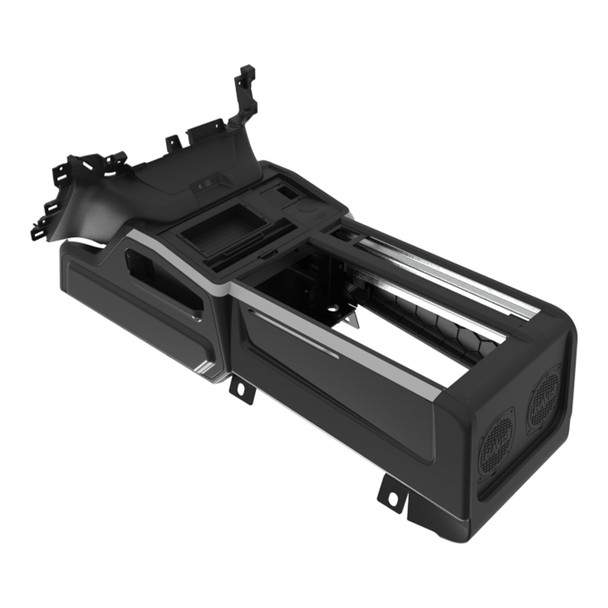

Wide VSX Console with Front Printer Mount or Integrated Storage Bin for 2025 Chevrolet Tahoe PPV & SSV

• Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
• Heavy-duty steel floor-mounting structure provides rigid framework for console
• Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
• 23% lower weight than comporable steel consoles
• Low profile for safety and side-to-side egress
• Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
• Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
• Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately)
• Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-224, sold separately), relocated USB media hub, and port for 12V lighter plug
• 18" of total equipment mounting space in 9"W section
• 3.3"W section includes 15" of total equipment mounting space and removable 3" bracket for relocating 110V outlet
• Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
• Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system
• Use with CUP2-1004 self-adjusting double cup holder (fixed mount and C-ARM-1001 arm rest, sold separately)
• Filler plates and equipment brackets for 9"W and 3.3W sections included to enclose mounting areas
• Made in the USA with a lifetime warranty

Specifications

• Dimensions: 42.6"L x 16.8"W x 13.3"H
• Compatible Printers: Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
• Mounting: Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
• Optional Cables:
  • DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
  • GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
  • Includes VSX-TAH-RFK-1 OEM Panel Replacement Kit
• Chevrolet Tahoe: Fits 2025 Chevrolet Tahoe PPV and SSV without OEM console
• Chevrolet Suburban: Fits 2025 Chevrolet Suburban LS with 40-20-40 split bench front seat option
• Gross weight: 42 lbs
• Side View Depth Measurements (PDF)
• Installation Guide (PDF)
