Pedestal System Kit for 2011-2016 Ford F-250 to F-550, 2011+ F-650/750 Super Duty

Kit Components

Vehicle Base (7160-0281)

Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.

Lower Tube (DS-LOWER-9)

The Lower Tube provides vertical clearance over the center console or the seat.

Upper Pole (7160-0178)

Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as gravity is centered on the pole. Wrench is needed for loosening, tightening, or height adjustment.

Mongoose 9” Locking Slide Arm (7160-0220)

Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward and 26° backward, and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC, or AMPS hole patterns.

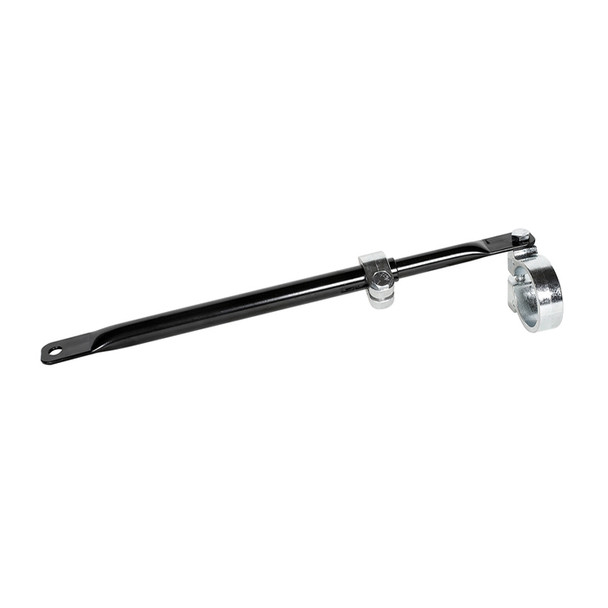

Support Brace (7160-0230)

Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.
