Overview

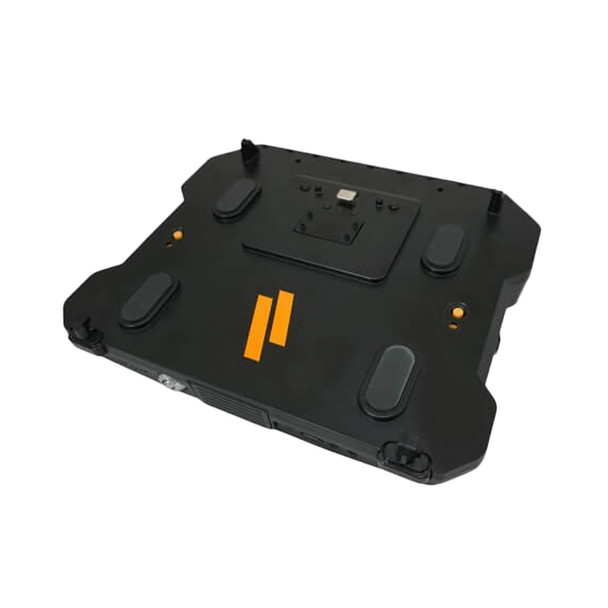

Cradle for Dell 5430, 7330, 5420, 5424, & 7424 Notebooks
- Supports Dell's 5404, 5414, 5420, 5424, 5430, 7204, 7214, 7330, and 7424 Rugged Notebooks in public safety, utility, and other demanding environments
- Rounded corners and edges for safety
- Adjustable and lockable front arms accommodate new and legacy notebooks
- Access to all notebook buttons and ports when docked
- One-handed docking and undocking (patent pending)
- Keyed lock
- Compact and lightweight
- U-style mounting bracket with seating notch for easy installation
- Compatible with screen support (DS-DA-412, sold separately)
- Made in USA
Specifications
- Compatible Devices: Dell Rugged Notebooks 5404, 5414, 5420, 5424, 5430, 7204, 7214, 7330, and 7424
-
Certifications:
- UL safety (pending)
- Vibration Testing: MIL-STD 810H 514.5
- Crash Testing: SAE J1455 30mph
- Cycle Testing: Latch handle and docking connectors mechanism 30,000 cycles
- Environmental Testing: Hot/cold operational (-20°C to 60°C) and storage
-
Connectivity:
- (3) Fully-powered USB 3.0
- (1) Fully-powered USB 2.0, front-facing
- (1) RJ45 jack, gigabit lan 10/100/1000 mb/s
- (2) DB9 (9-Pin) connection
- (1) VGA
- (1) HDMI
- (1) Speaker, front-facing
- (1) Mic, front-facing
- Height: 10.33" (26.23 cm) with arms collapsed or 10.6" (26.91 cm) with arms extended
- Width: 12.4" (31.48 cm)
- Depth: 2.73" (6.94 cm)
- Product Weight: 2.79 lbs (1.27 kg) without mounting bracket, 4.23 lbs (1.92 kg) with mounting bracket
- Gross Weight: 5 lbs
- Owner's Manual (PDF)
