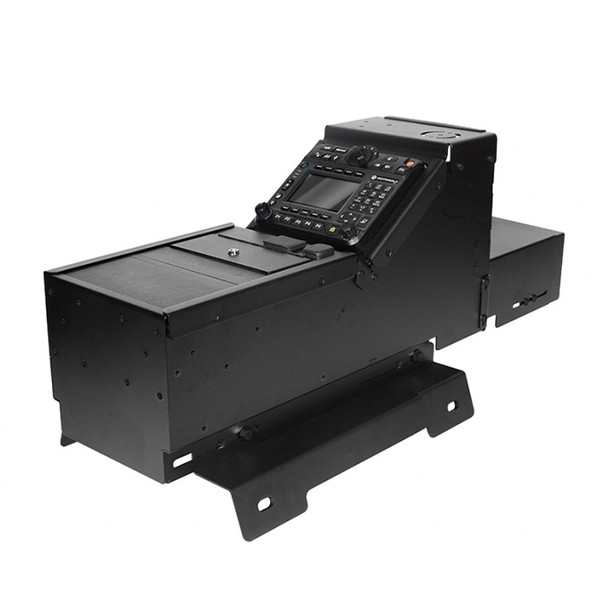

Console Package - 2014-2020 Chevrolet/GMC Truck and Full-Size SUV Console

Console package including vehicle-specific console box, leg kit, and optional wiring chase for 2014-2020 Chevrolet/GMC trucks and full-size SUVs.

Product Details

• Place on top of transmission hump
• Bucket seat configuration
• No drilling required, attaches to transmission hump
• Heavy gauge steel, fully welded construction for long-term durability
• Black powder coat finish for maximum corrosion resistance
• Attaches to the vehicle without the need to order a separate top plate. Leg kit is provided with the console box
• Two 12-volt plug inserts located on passenger side
• USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12-volt from factory console can be relocated using faceplate (15250)
• Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes
• Computer can be center mounted in two locations: off-set towards the passenger on the smiley face pattern, or on the 3-bolt pattern closer to the driver for easy articulation access
• Vertical, angled section accommodates 7.5” (19.1 cm) of mounting space and is designed to house 1-2 full-sized radios or a larger radio such as the Motorola APX 09
• Horizontal, low-profile section accommodates 11.5" (29.2 cm) of mounting space and is designed to house radio control heads and accessories
• Box will ship fully assembled
• 3 faceplates and 3 filler panels are included
• Console box works with manual 4x4 shift lever
• Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.

Compatible Vehicles

• 2014-2018 Chevrolet Silverado 1500
• 2015-2019 Chevrolet Silverado 2500/3500
• 2015-2020 Chevrolet Suburban/Tahoe
• 2014-2018 GMC Sierra 1500
• 2015-2019 GMC Sierra 2500/3500
• 2015-2020 GMC Yukon/Yukon XL

Package Includes

• Console Box (7160-0548)
• Leg Kit (7160-0509)
• Wiring Chase (7110-1024) (optional)

Specifications

• Mounting Space: 7.5" in angled section, 11.5" in horizontal section (8.0" with cup holder)
• Weight: 18.5 lbs (8.4 kg)
• Height: 14.82 in (37.6 cm)
• Width: 13.71 in (34.8 cm)
• Depth: 24.92 in (63.3 cm)
