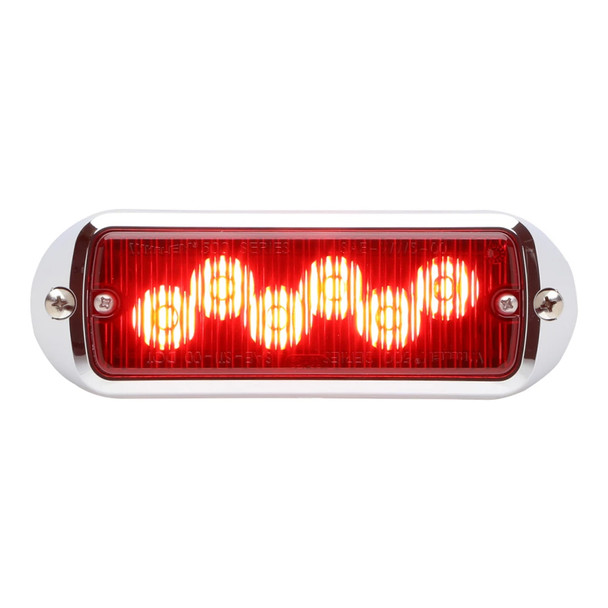

500 Series TIR6™ Super-LED® Lighthead

The 500 Series lighthead features Whelen's Linear Super-LED® optic technology, which provides bright, consistent warning illumination for several different vehicle applications, including fire, EMS, utility, and DOT fleets. Its design ensures powerful warning signals and scene lighting, providing effective visibility in both daytime and nighttime conditions. Built for mounting versatility, the 500 Series can be easily installed on a variety of vehicle surfaces. Engineered for durability, the 500 Series is built to withstand harsh environments, making it a reliable choice for any fleet requiring adaptable, high-output lighting.

Compact, Wide-Profile Design

Provides broad coverage with enhanced visibility in a sleek, compact form.

Proven Performance

The Hundred Series is renowned for its durability, versatility, and dependable performance.

Specifications

• Optics: Linear Super-LED®
• Technology:
  • SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
  • Scan-Lock™: Advanced flash pattern control
  • Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
• Flash Patterns:
  • Single-Color: 25 Scan-Lock™ flash patterns
  • Split-Color: 69 Scan-Lock™ flash patterns
• Control: SmartLED
• Customization:
  • Configuration: Single-Color, Split-Color
  • Lenses: Clear or Color
  • Optional Additions: Black, Chrome, or Aluminum Flange, Grommet Mount Kit
• Construction:
  • Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
  • Conformal Coated Electronics: environmental, moisture, and vibration resistance
  • Fully Encapsulated: Moisture, vibration, and corrosion resistance
• Mounting: Surface
• Included Cables & Hardware: 18 AWG 12" (30.48 cm) Pigtail
• Certifications:
  • SAE Standards: SAE J595, SAE J845
  • Emergency Vehicle Standards: NFPA 1900, KKK-A-1822F
  • Regulatory Compliance: CA Title 13, R10
• Warranty: 5-year
• Voltage: 12 VDC
• Amps:
  • Single-Color: 0.63 (peak), 0.315 (avg.)
  • Split-Color: 0.315 (peak), 0.125 (avg.) per side
• Size
  • Width: 5.38" (13.67 cm)
  • Height: 2.13" (5.41 cm)
  • Depth: 1.63" (4.14 cm)
