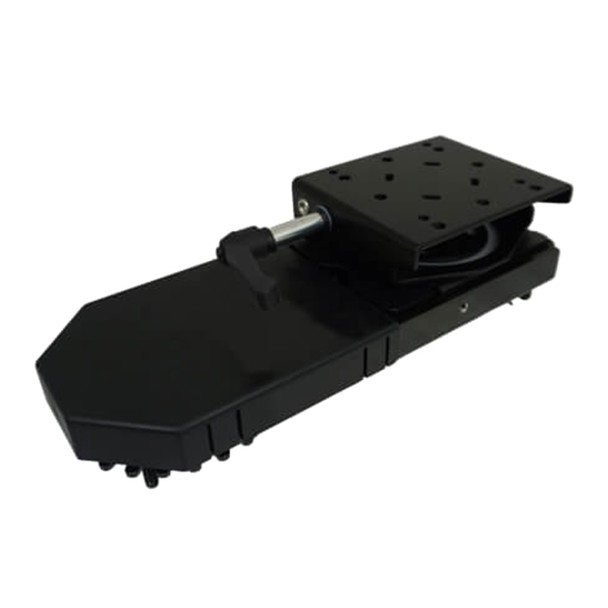

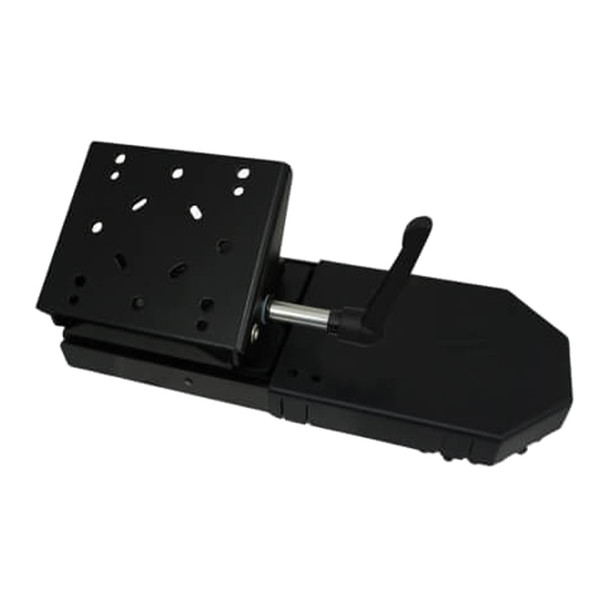

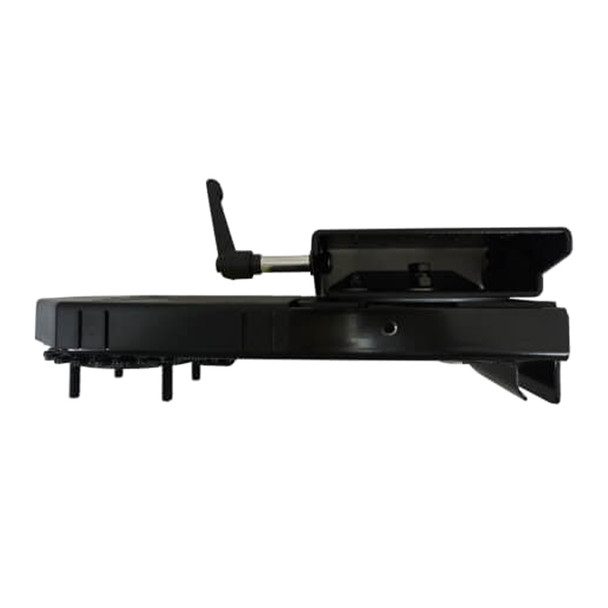

11" Slide Out Locking Swing Arm with Low Profile Motion Device Adapter

• Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
• 360° of smooth rotation for ideal computing device viewing angles from both the driver and front passenger seats
• Swing arm has 24 locking points, or every 15° of rotation to maximize placement options
• Slide out extends up to 3.75" with smooth gliding action to lengthen arm from 11.25" up to 15"
• Includes C-MD-204 motion adapter that can provide up to 180° of rotation and 45° of tilt for laptops, tablets, see C-MD-204 page for additional information
• Locking handles provided for both slide and tilt functions
• Slide locking handle can be installed on either left or right side
• Rotation and slide tension easily adjusted with hand tools, no disassembly required
• Ruggedized design adds protection for improved safety of occupants and equipment
• Will accept C-ADP-110 adaptor

Specifications

• Material: Rugged heavy gauge black powder coated steel and machined 6061 aircraft aluminum for strength, durability, and rust prevention
• Mounting pattern: 4 hole @ 2.125" square (1/4" Mounting hardware provided) to attach to a HDM pole or Havis consoles with forward mounting platform
• Product weight: 8.3 lbs
• Gross weight: 11 lbs
• Installation Guide (PDF)
